They are tiny, easy to lose and probably one of the least exciting parts of a bicycle — but bicycle valve caps actually come in several different types. If you've ever tried to replace a missing one, you may also have discovered that they aren't necessarily interchangeable.
So what are the different types, how can you tell them apart, and are they actually necessary?
First: What is a bicycle valve cap?
A valve cap, sometimes called a dust cap, is the small cap that screws or pushes over the end of the valve on your bicycle tyre.
Its main job is to keep dust, grit, water and general road grime away from the valve mechanism. It isn't normally responsible for keeping your tyre inflated — the valve itself does that.There are three main bicycle valve types you'll encounter:
- Presta
- Schrader
- Dunlop/Woods
Presta and Schrader are by far the most common on modern bicycles. (BikeRadar)
1. Presta valve caps
The Presta valve is the tall, narrow valve you are likely to see on road bikes, gravel bikes and many higher-end bicycles.
It's noticeably thinner than a Schrader valve and has a little threaded nut at the very top which you unscrew before inflating the tyre.
A Presta valve is approximately 6 mm in diameter, compared with roughly 8 mm for a Schrader valve.
What does the cap look like?
A Presta cap is small and narrow, usually made from plastic. It slides or screws over the very top of the valve.
Because the Presta valve already has its own little screw mechanism which closes the valve, the cap isn't actually required to keep the air inside.
2. Schrader valve caps
The Schrader valve is the chunky valve that you may recognise from a car tyre.
It's approximately 8 mm in diameter, making it considerably wider than a Presta valve. It has a little spring-loaded pin in the centre which is pressed down when you attach a pump. (BikeRadar)
You'll commonly find Schrader valves on:
- Children's bikes
- City bikes
- Older bicycles
- Many entry-level bikes
- Some mountain bikes
They're also particularly convenient because many petrol-station pumps and car tyre pumps are designed for Schrader valves. (BikeRadar)
What does the cap look like?
A Schrader cap is wider and shorter than a Presta cap. It usually screws onto the external thread around the valve.
And because the spring-loaded valve mechanism is more exposed, keeping a dust cap on a Schrader valve is particularly sensible.
3. Dunlop or Woods valve caps
The Dunlop valve, also known as a Woods valve, is much less common in the UK than Presta and Schrader.
You'll occasionally encounter it on traditional Dutch-style bicycles and some European bikes.
It looks somewhat different from both of the others and uses a removable valve core held in place by a small retaining nut.
If you have one of these, you'll need a compatible cap rather than assuming a standard Presta or Schrader cap will fit.
How do you tell which valve you have?
The easiest method is simply to look at the valve:
| Valve | Approx. diameter | How to recognise it | Common uses |
|---|---|---|---|
| Presta | ~6 mm | Very thin, with tiny screw at the top | Road, gravel, performance bikes |
| Schrader | ~8 mm | Thick, like a car tyre valve, with pin in centre | City, children's, MTB, older bikes |
| Dunlop/Woods | Varies by design | Distinctive removable core/retaining ring | Dutch/European bikes |
The important thing to remember is that the valve itself determines the size of the cap. A Presta cap won't properly fit a Schrader valve and vice versa.
Which type is most common?
There isn't one universal answer because it depends on the type of cycling and the country.
Schrader valves are extremely widespread because they are also used on cars and many inexpensive and everyday bicycles.
Presta valves are now extremely common on modern road, gravel and performance bicycles, and are arguably the valve you're most likely to encounter on a higher-specification bike. (BikeRadar)
Dunlop/Woods valves are much less common in modern bikes, although they remain relatively familiar on Dutch-style bicycles.
Do you actually need a valve cap?
Technically, no.
Your tyre isn't going to immediately deflate because you've lost the little plastic cap.
The actual valve mechanism is what keeps the air inside. This is particularly obvious with Presta valves, which have their own screw-operated closure.
However, the cap is there for a reason: protection.
Over time, road dirt, dust, grit and moisture can get into an exposed valve. Keeping a cap fitted is therefore a cheap and easy way of protecting it. (mackadamfactors.co.uk)
So my advice would be:
If you've got a valve cap, keep it on. If you've lost one, don't panic.
They're inexpensive and easy to replace, and there's no reason not to use one.
And what about fancy metal valve caps?
This is where something very boring becomes surprisingly fun.

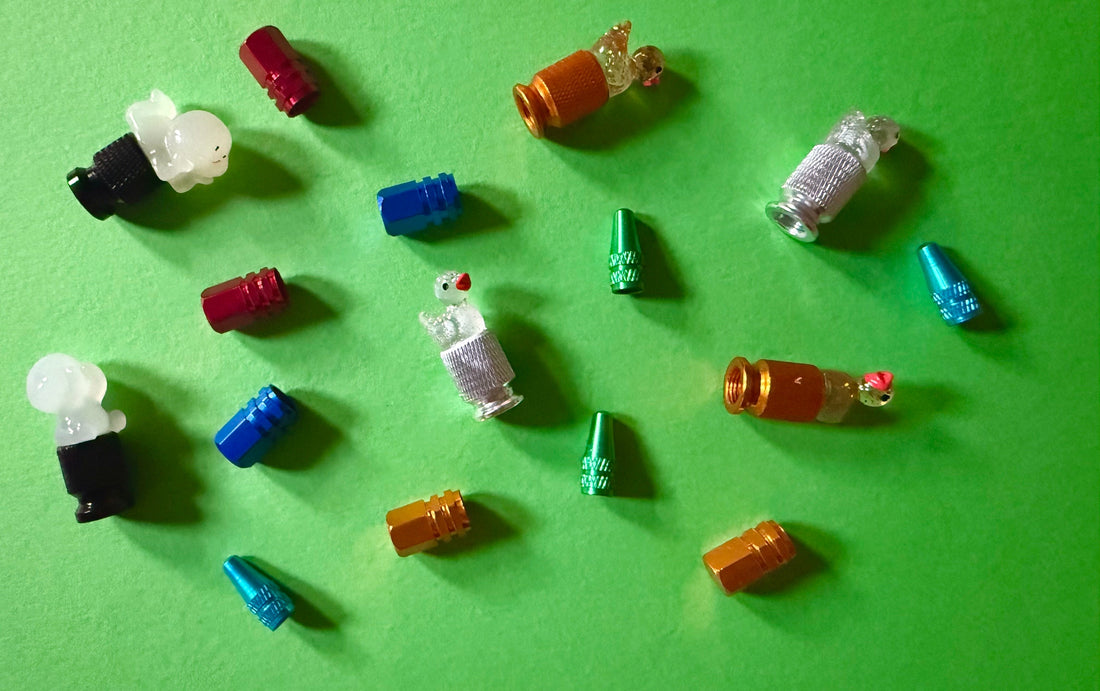

Valve caps don't have to be plain black plastic. You can buy them in aluminium, brass, coloured plastic, novelty shapes and all sorts of designs.
For most bikes, they are primarily decorative and protective rather than performance-enhancing. A £1 plastic cap will do essentially the same basic job as a much more expensive fancy one.
But because they're so small, valve caps are also an easy way to add a tiny bit of personality to a bicycle — particularly if you're matching them to the colour of your frame, tyres or other accessories.
The simple rule
Thin valve = probably Presta = small, narrow cap.
Thick valve with a central pin = Schrader = wider cap.
Dutch-style removable-core valve = probably Dunlop/Woods = specialist cap.
And if you're buying replacement caps, don't measure the cap — identify the valve first. That's the easiest way to get the right fit.
Sources: BikeRadar's overview of Presta, Schrader and Woods valves, and cycling maintenance guidance on valve caps and dimensions. (BikeRadar)
